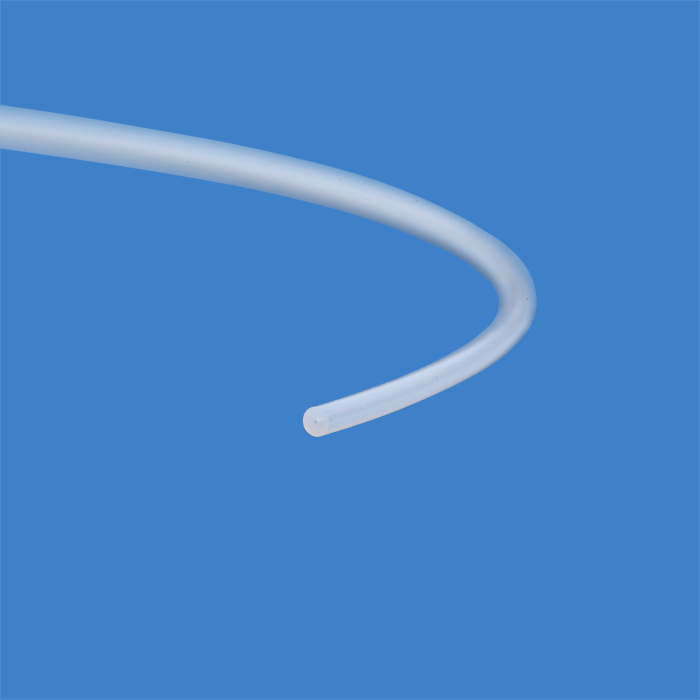

Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-07-3M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution designed for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering excellent chemical resistance, flexibility, and consistent dimensional tolerances.
Manufactured from virgin PTFE resin, this tubing contains no plasticizers or additives, ensuring minimal contamination risk and suitability for sensitive analytical workflows.
Precision Dimensions – Low Flow Optimization
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Ideal for low flow rate applications and precise solvent delivery
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Supports stable, reliable solvent handling in HPLC systems
Virgin PTFE Construction – High Purity & Inertness
Made from 100% virgin PTFE
No additives (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination in LC‑MS and high‑sensitivity methods
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding analytical environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
May affect:
Degassed solvent stability
Oxygen‑sensitive workflows
✅ Consider alternative materials when strict gas impermeability is required
Flexible & Durable Design
Flexible for easy installation and routing
Durable under routine lab use
Natural translucent color allows visual flow confirmation
✅ Enhances ease of use and system maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Choose the length that best fits your application:
3 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste lines
Low‑pressure fluid transfer systems
General laboratory tubing applications
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC connections
Consider permeability for degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure connections
